Flat Bed Press Die Cutting And Creasing Machine Electric Control System
Brief Introduction to Equipment

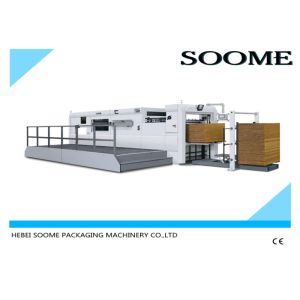

The SMMQ series semi-automatic die cutting machine with front conveyor delivery machanism manufactured by HEBEI SOOME Machinery Co., Ltd.,it can efficiently complete embossing processing of die-cutting products, as well as maintaining the highest precision and product quality. This series semi-automatic die cutting machine with front conveyor delivery machanism with are well equipped and almost can adapt to all die cutting requirements of products.
- Adopt nodular cast iron-QT500-7, the machine body casting by special Technology process, thus featuring by high strength, never deformation and ensure the safety of the machine body.
- Adopt Taiwan-imported intermittent mechanism to ensure that the machine operates accurately and reduce the occurrence of failure rate.
- The whole machine all uses NSK imported original bearing.
- The whole machine uses original parts imported from France Schneider, and Japanese OMRON, etc.
- Key parts of teeth row are imported from Japan.
- Die cutting accuracy reach to ±0.1mm .
- The craft shaft is adopts Germany Ni-Cr-Mo metal steel, with high precision and will never deforms.
- Use the centerline positioning system to realize fast plate changing of worksheet.
- Equiped with Cangzhou first-developed pressure automatic adjustment device, ensure fast and smooth when they adjusting of die cutting pressure.
- Die-cutting plate frame adopts auxiliary plate-installation device, to realize different of model machines can be use universal die-cutting plate .
- Equip with touch-screen operation interface in both Chinese and English.
- All adopt Taiwan AIRTAC pneumatic components to ensure every pneumatic action performs accurately.
Feeding and pre-stack
Safe and reliable pre-stack device makes paper-pile tidier.
Economic and practical manual paper feeding efficiently solves the problems, such as wrapping paper’s difficultly entering and paper’s not reaching the right position. Automatic rising paper feeding platform makes work more convenient and quick.
It is convenient to adjust the stable front lay and side lay. LCD displays the machine state, trouble reason and troubleshooting, which fully actualizes man-machine communication and makes operation more convenient.
Electric control box
Electric control system adopts microcomputer control, actualizing feeding, die cutting and delivery’s automatic control and timely detection.
Various safety devices actualize safe and reliable operation.
Main machine die cutting part
High-precision indexing mechanism is adopted to ensure accurate index and steady running.
Pneumatic clutch from Italy delivers large torque. The patent card board technology of Nikko Holding of Japan combined with simple plate frame device makes installation and change of plate faster and secondary installation quicker. At the same time large plate’s dropping problem is resolved.
Delivery part
It is easy to adjust front-rear even and side even ensuring tidy delivery.
Automatic paper delivery platform is high enough to make delivery more convenient and work efficiency improved.
Non-stop sampling mechanism can actualize the inspection of die cutting sheets at any moment.
| Model | SMMQ-BMY-1300 | SMMQ-BMY-1500 | SMMQ-BMY-1700 |
| Max. paper size (mm) | 1300x980 | 1500x1100 | 1700x1210 |
| Min. paper size (mm) | 550x450 | 550x500 | 680x600 |
| Max. die-cutting size (mm) | 1280x960 | 1480x1080 | 1680x1190 |
| Max. die-cutting pressure (T) | 250 | 300 | 300 |
| Max. speed (sheets/h) | 4500 | 4500 | 3500 |
| Power (kw) | 13.5 | 15 | 17.5 |
| Machine weight (T) | 16 | 19 | 22 |
| Dimensions (mm) | 4500x2300x2400 | 4500x2600x2700 | 6000x4600x2300 |
