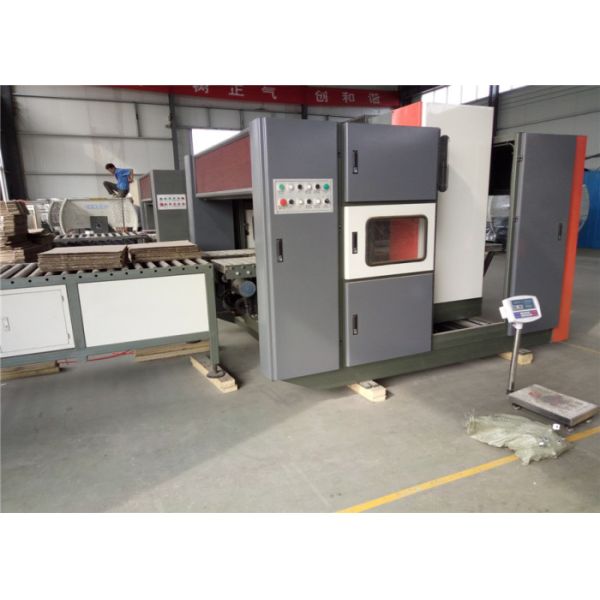

Automatic Strapping Corrugated Box Machine 380V 2.75 KW 1300 / 1500 Type
Introduction to the performance :
The double head automatic binding machine has strong structure, and its excellent quality can provide superior performance for customers.
1. Simple operation, safety and no need of experience.
2. Cost saving. (the cost of using the local consumables is PP with the 1/4 of the baler).
3. high efficiency and stable performance.
4. This machine can be used for automatic box-binding machine, automatic nailing machine, semi-automatic box-binding machine, automatic box-binding machine, printing and bonding linkage line, matching processing customized.
5. The original or rear end of the machine can be equipped with customized roller conveying logistics. Cartons or cardboard can be automatically transported and removed. It does not require manual handling, and saves time and effort.
(1)1300/1500 Type
- Mainframe dimension:L2700×W(2300-3300)×H2000(MM)
- Feeding rack size:1900×990×870 (MM)
- Coming feeding rack size:L 1200×W 610×H860(MM)
- Total power:2.75(KW)
- Voltage: 380 (V)
- Strapping size :L(480-1500),W(300-1000),H(80-280)(MM)
- End to carton edge dimensions:80-170 (MM)
- Gross mass :2000(KG)
- working pressure :0.6-0.8(map)
- Using consumables:35-50# End band
- Phase size adjustment:Electric
- Whole paper dimension adjustment:Electric
- Strapping speed:15-18(pcs/min)
- Electric:Motor(Taiwan,Chengbang) PLC(Panasonic) Frequency transformer(Delta) Switch(CHINT) Contactor (Siemens ) Solenoid valve (Yadecker) touch screen (MCGS)
- Head spare part :Important parts are imported.
