Computerized Corrugated Thin Blade Slitter Scorer Machine With Three Types Of Scorers

Speed 200M / Min Computerized Thin Blade Slitter Scorer Machine For Corrugated Line

Summarize

Corrugated paperboard production line equipment, using thin knife (thickness is only about 1mm), will longitudinally cut corrugated cardboard, and vertical pressure line.

Function and Characteristic

1. High quality touch screen and PLC equipped composing the CNC system,connect to the production line.

2. High quality beeline rail and high-precision screw conveying guarantees the precision.

3. A memory of orders,realize non-stop automatic or manual change.

4. Speed synchronizes with board speed.Standard communication interface,easy to link with management system.

5. Quick change order within 1-5 seconds,Application of two machine together can also realize fast change.

6. Alloyed steel thin-blades,sharp and long life of over 8 million meters,automatic sharpening

7. The knife for computer control automatic or manual knife sharpening,edge trimming knife,improve production efficiency.

8. Three types of scorers:convex to concave(three lines).convex to concave(five lines),convex to flat.

9. Two rows of scorers,realizes minimum scorer spacing is 0mm.

10. Computer control score-depth,high quality scorer,more steady .

11. Using the synchronous belt transmission ,low noise,prolong using time.

12. Standard motorized body left-right rectification system 200mm.

corrugated slitter machine

cardboard slitting machine

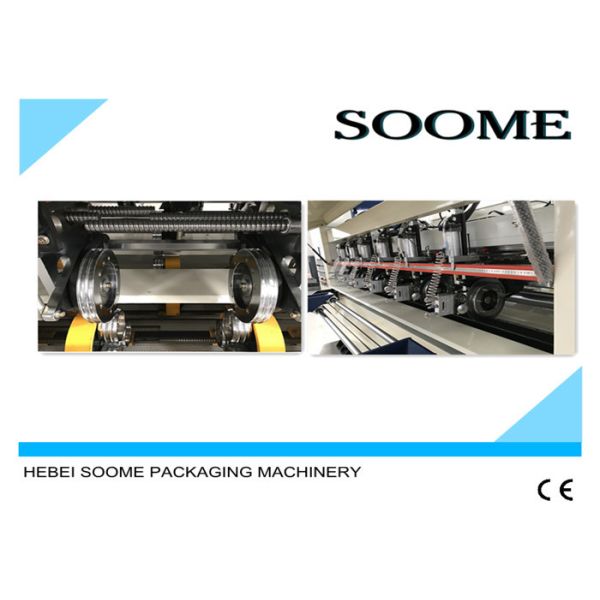

Computerized Corrugated Thin Blade Slitter Scorer Machine With Three Types Of Scorers Images
