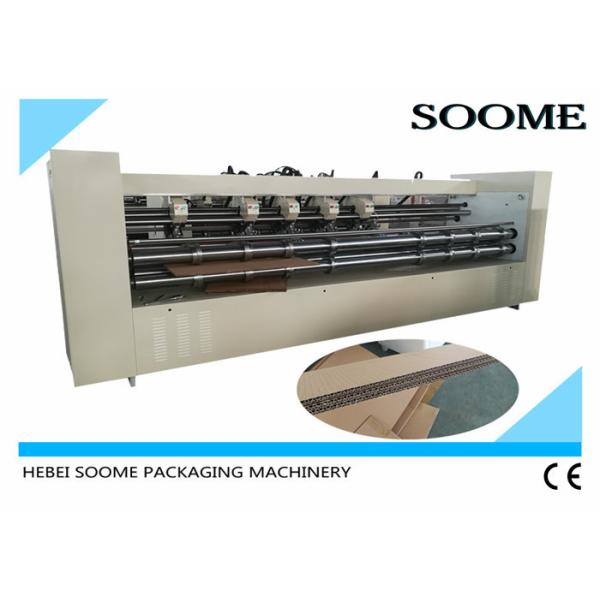

20mm Board Huge Slitter Scorer Machine Slitting Creasing Thick Sheet Cutting Machine
I. General introduction
Thin blade slitter scorer has two main types: one kind is online slitter scorer can match with corrugated production line; another kind is offline slitter scorer can work separately for corrugated sheets slitting creasing before making cartons.
For the offline slitter scorer mainly has two types about the feeder: manual feeder and automatic feeder.
And for the blades and scorers quantity, can make as customer working need. Blades and scorers also has manual adjustment and electrical adjustment.
This offline huge slitter scorer is customized specially for 20mm thick sheets, every part is different. Machien equipped with pre-creasers for better creasing effect.
II. Function and Features
1. Slitting part: adopt high quality tungsten steel alloy thin blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.
2. Adopt 10 shafts design, two shafts in front and back of the slitter, can minimize the length of paperboard.
3. 10 shafts with pre-creaser shafts, front-scoring feeding,back double rubber rollers for paper leading, running more steady.
4. Scoring part: adopt 3 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet. Increase pre-creaser to crease board in advance to avoid broad break.
5. Grinding part: adopt manual or automatic two types blades grinding by pneumatic, it could be grinding when working, improve work efficiency.
6. Electric adjusted the space of slitter blade and auto pneumatic locking, easy to operate, improve the efficiency.
7. Double guide smooth shafts, operate stably; inlay PU ring seal, clean and dust-proof.
8. Adopt HRB bearings and high strength Japanese SUBAKE belts.
9. Make all shafts, rollers and wallboard thicker to 38mm.
10. All the chain wheels material is #45 steel.
11. Main motor is about 9kw excitation motor.
III. Technical parameters
| TYPE | SMBD-DD-2000 | SMBD-DD-2500 | SMBD-DD-3000 | SMBD-DD-3500 | SMBD-DD-3800 |
| Effective width | 1800mm | 2300mm | 2800mm | 3400mm | 3700mm |
| Total power | 4kw | 5kw | 5kw | 7.5kw | 9kw |
| Blade size | Ø105*190*1.2mm | Ø105*190*1.2mm | Ø105*190*1.2mm | Ø200*122*1.2mm | Ø200*122*1.2mm |
| Max. Slitting width | 1800mm | 2300mm | 2800mm | 3300mm | 3600mm |
| Min. Slitting width | 130mm | 130kw | 130mm | 130mm | 130mm |
| Min. Scoring width | 30mm | 30mm | 30mm | 30mm | 30mm |
| Min. Paper length | 260mm | 260mm | 260mm | 360mm | 360mm |
| Max. Paper thickness | 12mm | 12mm | 12mm | 20mm | 20mm |
| Scorer adjust height | 14mm | 14mm | 14mm | 14mm | 14mm |
| Dimensions L x W x H (mm) | 2650*800*1700 | 3150*800*1700 | 3650*800*1700 | 4200*1000*1700 | 4470*1200*1700 |
IV. FAQ
1. Where is your factory located?
A: Our factory is in Dongguang county, Cangzhou city, Hebei, China.
2. Will you attend Corrugated Packaging Exhibition?
A: Yes, we attend the Sinco Corrugated Expro every year. One year in Shanghai and next year in Dongguan, Guangdong province.
3. Can customer visit SOOME factory?
A: Yes, welcome to visit our factory anytime. Can contact us before your coming.
V. Detailed photos
