Electrical Corrugated Paperboard Slitting Machine Easy Operation High Efficiency Adopt Eight Rolls

Automatic Feeding Paper Type Thin Blade Paperboard Slitting Scorer Machine 4 Blade 6 Creasing 2500mm Wide

Product overview:

The more shafts thin blade slitter scorer adopt two shafts in front and back of the slitter, can minimize the length of paperboard, is suitable to the common paper and the small baffle paper. Electrical adjustment of the blades and scorers work width, automatic locking, improved the working efficiency.

Function and features:

1. Adjust the baffle size by lead screw, easy to operate.

2. Can set processing paper qty, automatic stop the feeding after finishing.

3. Automatic adsorption feeding, improve the operation security, reduce the labor intensity.

4. Suitable to the long paper slitting creasing.

5. Electrical adjustment of the slitting blade work width, automatic locking, dual guide shafts, dual locking air cyliner, steady running, easy to adjust. Has the inlay o-ring seal, dust-proof, reduce the failure rate.

6. Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.

7. Adopt eight rolls, two roll-rang feeding, then scoring ,easy to adjust. It can do slitting only without scoring, avoid error conveying when scoring later.

8. Can choose automatic or manual sharpening of blade.

9. Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet. Electrical adjustment of the width between scorers.

Technical parameters:

FAQ:

1. Is the profile customizable?

Yea, We will provide a feasible plan according to the requirements of our customers, and help customers find the right machines.

2. How many workers do this machine need to operate at least?

Need 2 workers, One do Feeding paper anther one do receive paper.If you want to save worker cost you can choose automatic feeding paper and add staking for this machine.

3.Will manufacturers continue to provide after sales service after the warranty period is over?

Yea, Of course. If you need any help you can contact seller person. If you need change quick-wear part, we can give you,but need customer payment cost.

4. Can you send engineers to go abroad to install and debug?

Yea, can but worker cost need customer payment.(E.g: Airplane ticket,Visa cost,Engineer commission and so on)

5. Are you a trading company or a manufacturer?

Our company founded in 1995, we specialize in R & D and manufacture of carton packaging machinery.

corrugated slitter machine

slitter scorer machine

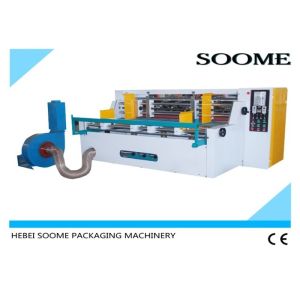

Electrical Corrugated Paperboard Slitting Machine Easy Operation High Efficiency Adopt Eight Rolls Images
