60pcs/Min For Corrugation Chain 2 Colors Flexo Printer With Slotter
1. Summarize
Semi-automatic chain 2 colors flexo printer with slotter adopts electric counter, can control the paper quantity exactly, adjusting 4 slotting knives by manual together to change the slotting depth together, finish the corrugated carton box height adjustment in one time together. Manual chain 2 colors flexo printer with slotter transverse moves of 4 slotting knives separately. The chain 2 colors flexo printer with slotter could be suitable for 3/5/7 layers corrugated paperboards production.
2. Features and Characteristics
paper feeding unit
1.Chain 2 colors flexo printer with slotter paper feeding type, stepless speed control.
2.In front of chain feeder installed the elastic pressing strips to help the curved paper feed in.
3.Light-operated counter, chain 2 colors flexo printer with slotter can set the order qty.
4.The working table connected with machine, the clutch helps match with printing plate easily.
1.Printing roller:
(1)Chain 2 colors flexo printer with slotter diameter with printing plate: 540mm.
(2)High quality steel, surface grinding, hard chrome plated. Chain 2 colors flexo printer with slotter dynamic balancing correction, steady running, suitable to high speed running.
(3)Chain 2 colors flexo printer with slotter engrave basic mark line in the horizontal and peripheral direction of the roller, convenient for register plate.
(4)Printing roller phase adjustment is planetary gear driving structure, digital control in 360°, electrical phase adjustment.
(5)Chain 2 colors flexo printer with slotter equipped pedal to control the roller,easy to change the printing plate.
(6)Auto self-returning system.
2.Pressing roller:
(1)Out diameter 176mm. Chain 2 colors flexo printer with slotter adopt high quality processing, dynamic balancing and correction, steady running.
(2)Gears adopt non backlash adjustment device, will not affect the gears occlusion when adjust, make sure the driving precision good.
(3)Chain 2 colors flexo printer with slotter printing roller adjustment range is 0~10mm.
3.Metal anilox roller:
(1)Diameter 215mm.
(2)Anilox roller mesh: 180-280LPI, can choose as customer need.
(3)Chain 2 colors flexo printer with slotter pneumatic anilox roller automatically lifting device and idle device. (Can choose ceramic roller as per customer requirements).
4.Rubber roller:
(1)Out diameter 215mm. Overrunning coupler and self-motion idle device, avoid the ink drying.
(2)Chain 2 colors flexo printer with slotter has the medium height on the rubber roller to keep the ink distribution averagely.
(3)Fast micro adjustment of gap self-locking device, make sure the ink supplying averagely.
(4)Single driving system, make sure ink distribution averagely.
5.Paper feeding roller:
(1)Paper feeding roller(out diameter 136mm), 4 rollers for paper feeding adopt non backlash adjustment device, the range is 0-11mm.
(2)Manual gear box gap adjustment, locking device, fast and reliable.
6.Ink supplying system:
(1)Chain 2 colors flexo printer with slotter pneumatic diaphragm, simple operation, convenient maintenance, ink supplying steadily.
(2)Circular type pneumatic ink supplying, filter screen to take out of the impurity, keep the printing quality.
7.Phase adjustment device
(1)Planetary gear structure.
(2)Electrical adjustment in 360°in running and stop condition both can do.
8.Auto zero resetting system.
slotting unit
Chain 2 colors flexo printer with slotter adjust the direction and case height of each blade manually.same as the paper feeding gap.equipped sudden stop system to make sure safely production.
3.Technical Parameters
| No. | Item | 1650x2600 |
| 1 | Economic speed | 40-60pcs/min |
| 2 | Max. Feeding size | 1650mm×2400mm |
| 3 | Max. Printing size | 1550mm×2200mm |
| 4 | Suitable paper thickness | 2-12mm |
| 5 | Inner wallboard width | 2600mm |
| 6 | Knives outer diameter | Ø530mm |
Product Tags:
|
|

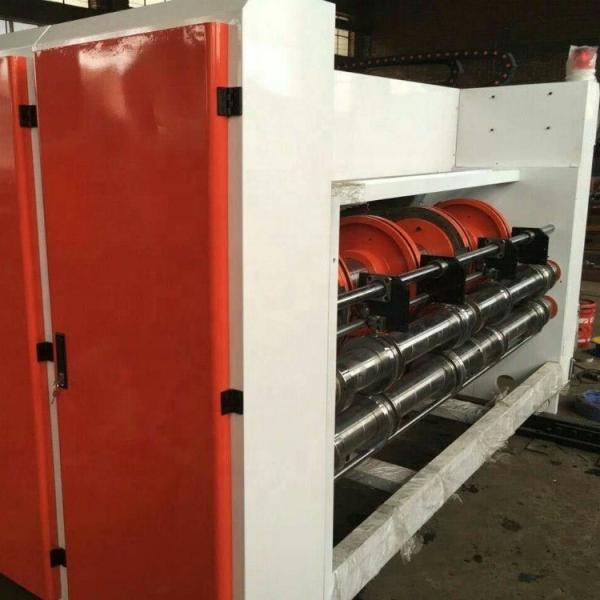

CE 60pcs/Min 2 Colour Flexo Printing Machine Images
|
