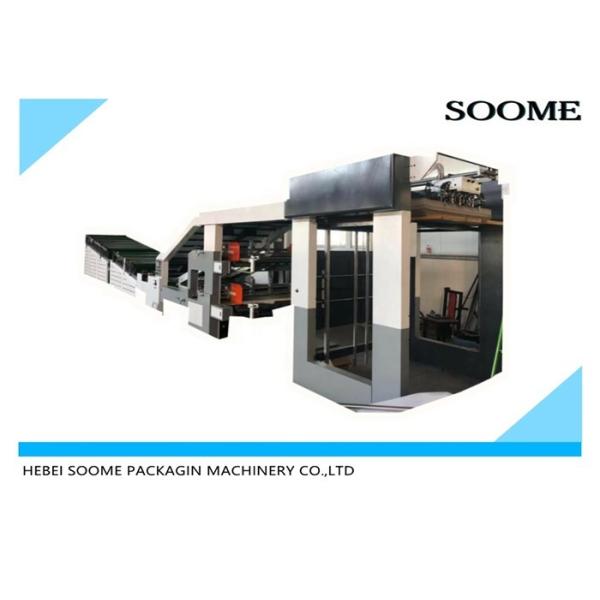

Automatic Suction Feeder Cardboard Laminating gluing machine With Servo Motor
Summarize
This machine is used for making Print paper and bottom paper(card paper, corrugated paper) match together accurately, then the paper level off, and high precision.
Features
1.Independent research and development, we are the first manufacturer for servo
Semi-automatic flute laminator.
2.Adopt PLC control system, working is more precision and stable,improved the speed, circuit faults can automatically alarm.
3.This machine adopts Taiwan servo motor, instead of the break,clutch and electronic eye, realized PLC & servo single control independently.
4.Worker feeds the surface paper, demand for surface paper is low, all kinds of 175g-500g surface paper can work well.
5.Corrugated cardboards auto feeding, as fast as the surface papers' working.
6.The machine operation is stable, surface paper with corrugated paper joint very
Accurate. The corrugated paper never pull ahead, surface paper's location is easy adjust.
7.Automatic gluing, and the glue can be used circulatory, avoid glue waste.
Function and Characteristic
1.Roller design scientifically, avoid glue fly out when the speed is high.
2.All electrical equipment import from Taiwan, ensure the machine running stable.
3.Pressure rollers adopt one side adjustment, convenient and fast.
4.Rocker controls wash roller's fluctuation, easy cleaning.
5.Counter designs scientifically, easy recording the amount you have been worked.
Technical Index
| Model | SMTM-QZD-1300 | SMTM-QZD-1500 | SMTM-QZD-1600 |
| Max size of cover face | 1300*1100(mm) | 1500*1250(mm) | 1600*1250(mm) |
| Min size of cover face | 360*360(mm) | 360*360(mm) | 360*360(mm) |
| Economic speed | 0-100pieces/min | 0-100pieces/min | 0-100pieces/min |
| Precision | +-1 | +-1 | +-1 |
| Power | 6kw | 6kw | 6kw |
| Size | 8.8*1.95*1.7(m) | 8.8*2.15*1.7(m) | 8.8*2.25*1.7(m) |
| Weight | 4.5T | 4.5T | 4.5T |
