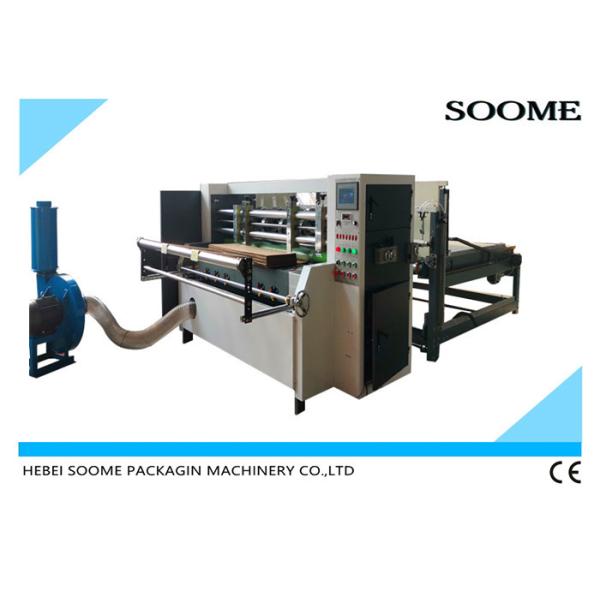

Auto Belt Feeding Thin Knife Blade Slitter Scorer Machine
The baffle size for screw adjustment,easy to operate.
Can set the qty.of paperboard,automatic stop the feeding after finishing.
Automatic feeding paper, Improve the safe operation,decreased the working load.
Cutting indentation for long cardboard.
The thin blade slitter scorer machine adopt auto suction feeding , decreased the working load, preventing cardboard from running askew,and ensuring the safety of staff operation.Axis-adding thin blade slitter scorer machine,because of the use of front and rear double rubber axis design,greatly reduces the length requirements of cardboard.
Characteristic:
1: The thin blade slitter scorer machine adopts leading edge automatic feeding mode, frequency converter control , labor saving is greatly saved, and the edge of the paperboard with thin knife is smooth and neat, and the corrugation is straight and non -degumming, which improves the quality of the outer tube of the incision.
2.The thin balded slitter score machine is eight axis machine, two roll-rang feeding, then scoring, easy to ad-justment, slitter scorer machine can be do scorer with out scorer, avoid error when scoring, which greatly improves the working efficiency.
Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.
Grinding part: adopt automatic and manual two kinds pneumatic grinding type, it could be grinding when working, improve work
efficiency
Adopt eight roll , two roll-rang feeding, then scoring ,easy to ad -justment.It could be do slitting only without scoring, avoid error when scoring.
Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.
Technical index:
| Model | 2000 | 2200 | 2500 | 2800 | 3000 |
| Max slitting size(mm) | 1800 | 2000 | 2300 | 2600 | 2800 |
| Min slitting size(mm) | 120 |
| Min slitting length(mm) | 270 |
| Min scorer width(mm) | 30 |
| Scorer height(mm) | 0-12 |
| Blade size(mm) | 190*105 |
| Blade/scorer | 4/6 ,5/8 ,6/10,7/12,8/14 |
| Machine dimension (LWH) | 2630*770*1350 | 2830*770*1350 | 3130*770*1350 | 3430*770*1350 | 3630*770*1350 |
| Power | 4 | 4 | 5.5 | 5.5 | 7.5 |
Electric appliance:
| Circuit breaker | SHILIN | Taiwan |
| Electric relay | Schneider | France |
| Push-button | ABB | Switzerland |
| Main motor | Yongshun | Guangzhou |
| Actuator | YANKONG | CHINA |
| Driving motor | YANKONG | CHINA |
| Bearing | HRB | China |
| Button | CHINT | China |
| Frequency converter | Delta | Taiwan |
| Air cylinder | Tianao | China |
