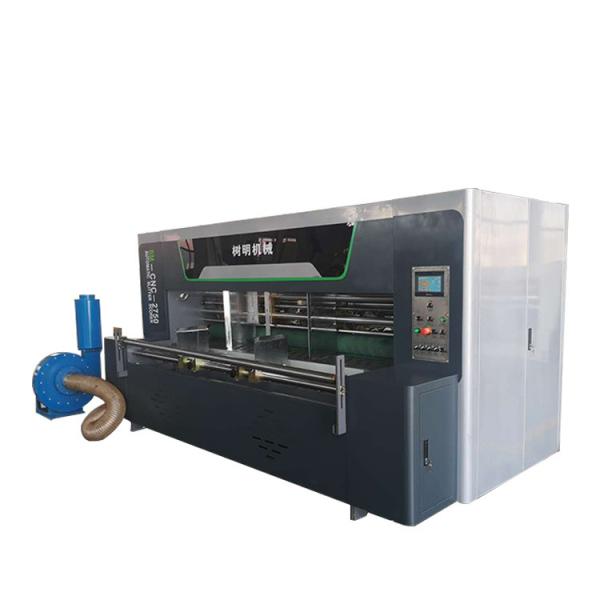

CE Slitter Scorer Corrugated Cardboard Knife Cutter And Line Making Machine
| Model | SMBD-ANC-2750 | SMBD-ANC-3250 |
| No.s of slitting scoring | 4/6 5/8 6/10 |
| Max.production speed | 180m/min |
| Max.feeding width | The Max.slitting between the two blades:2250mm | The Max.slitting between the two blades:2750mm |
| Max.slitting width | 2600mm | 3100mm |
| Min.slitting width | 200mm | 200mm |
| Min.feeding length | 200mm | 200mm |
| Min.scoring distance | 40*135mm | 40*135mm |
| Gap adjustment | Manual | Manual |
| Main motor power | 10kw | 12kw | |
| Dimensions L*W*H | 1570*3450*1500mm | 1570*3950*1500mm |
| Weigh | 2780kg | 2980kg |
- Type:
-
OTHER, Other
- Warranty:
-
1 YEAR
- Applicable Industries:
-
Manufacturing Plant
- After Warranty Service:
-
Field maintenance and repair service
- Local Service Location:
-
Egypt, pakistan, INDIA
- Showroom Location:
-
Egypt, pakistan, INDIA
- Video outgoing-inspection:
-
Provided
- Machinery Test Report:
-
not available
- Marketing Type:
-
Ordinary Product
- Warranty of core components:
-
1 YEAR
- Core Components:
-
MOTOR
- Condition:
-
New
- Application:
-
Machinery & Hardware, Device
- Packaging Type:
-
Film, case
- Packaging Material:
-
plastic, wood
- Automatic Grade:
-
Automatic
- Driven Type:
-
Electric
- Voltage:
-
220v/380v/440v
- Power:
-
7kw/7.5kw
- Place of Origin:
-
Hebei, China
- Brand Name:
-
Soome
- Weight:
-
1.5T
- Dimension(L*W*H):
-
3190*940*1820
- Certification:
-
CE
- After-sales Service Provided:
-
Field installation, commissioning and training, Engineers available to service machinery overseas
- Key Selling Points:
-
Remote Monitoring
- Color:
-
customized requriments
- blade:
-
4-7
- scorer:
-
6-12
- voltage:
-
customized requriments
- payment:
-
30% deposit and balance befroe shipment
- keyword:
-
thin blades creasing
Function and features:
FEEDING UNIT:
The baffle size for screw adjustment,easy to operate.
Can set the qty.of paperboard,automatic stop the feeding after finishing.
Automatic feeding paper, Improve the safe operation,decreased the working load.
Cutting indentation for long cardboard.
SLITTER SCORER UNIT:
Electric adjusted the space of slitter blade,auto pneumatic locking, Double guide optical axis,Double locking cylinder, stable operation, Convenient adjustment.The knife rest built-in polyurethane rubber, dust prevention,reduce the failure rate.
Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr
Adopt eight roll , two roll-rang feeding, then scoring ,easy to adjust.It could be do slitting only without scoring, avoid error when scoring.
Adopt automatic and manual two kinds grinding type.
Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.
HRB bearing,long time running.
Mechanical parts
Taiwan HIWIN linear guide way.
Order changing used HIWIN precision ball screw.
Bearings:Germany FAG,China HRB famous brand.
Synchronous belt:Japan SUBAK.
Adopt raw material tungsten alloy thin blade
