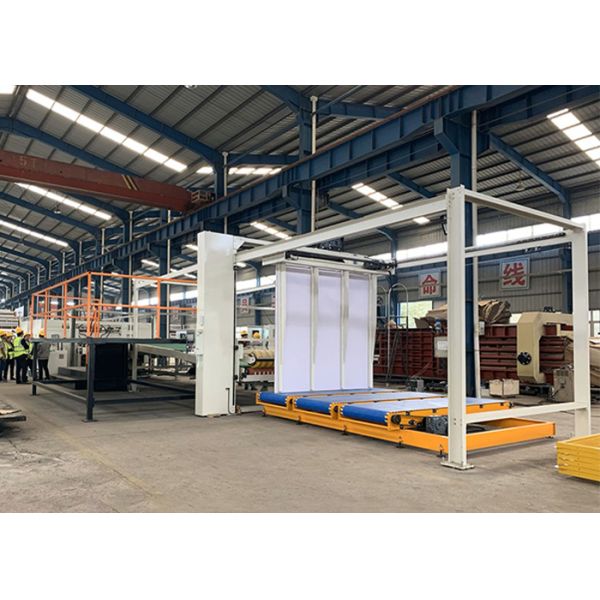

5 Ply Low Speed Corrugated Cardboard Production Line 220v

Brand Name : Soome

Model Number : SM-2200

Certification : CE

Place of Origin : Hebei China

MOQ : 1 set

Price : contrat

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2set per year

Delivery Time : 30 days

Packaging Details : film or plastic

Name : Cardboard product line

Usage : Cardboard

Function : Corrugated cardboard making

Speed : 250m/min

Automatic grade : Automatic grade

Voltage : 220/380/440V

Condition : New condition

Warranty : 1 Year

Contact Now

5 Ply Low Speed Cardboard Product Line

Europe Market 1800/2200/2500 JS Brand Cottugation Product Line

Use for corrugated paperboard making machine

Second hand high speed corrugated line

specification

Equipment name

UN IT

QT Y

Remark

RG-4-1060

Triple preheater

a

1

Cottugation Product Line

roller ￠1060mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of

360°.

GM-30

Double glue machine

(heavy

type)

a

1

Cottugation Product Line

Glue roller diameter 320mm.Frequency motor drive, PLC control. Glue quantity PCL automatic adjustment,HMI touch screen display.

TQ-I

 Conveyor bridge

set

1

Cottugation Product Line

200mm main beam channels, independent inverter motor drive pull paper feed, adsorption

tension.Electric correction.

NCBD

NC thin blade slitter scorer

a

2

Cottugation Product Line

Tungsten alloy steel, seven knives twelve lines, zero-pressure line type. Schneider servo computer automatically discharge knife, suction outlet width automatically adjusted.Closed electric control box,

plus air conditioning dehumidification

NC-30D

 Double NC cutter helical knives

a

1

Cottugation Product Line

Full AC servo control, energy storage brake, helical blade structure, oil-immersed gears,10.4-inch touch screen display.Closed electric control box, plus air

conditioning dehumidification

NC-DL

Double Automatic large down stacking

machine

a

1

Cottugation Product Line

 Five sections of the high-strength belt conveyor, frequency loop control,automatic points precision, row single-cycle 20 seconds,stacking length1800mm, HMI touch screen.
ZJZ Automatic Glue station set 1 Cottugation Product Line Customers -owned pipeline . Glue configuration is composed by carrier tank,main tank,storage tank,

Main Structure and Features

Tools up-loaded or lower-loaded.

Servo robot for tool set-up, ensuring quick and accurate tool positioning.

Variable frequency drive ensures accurate synchronization with the line

Automatic regrinding device keeps tool-edge sharp and heat volatilization, prolong the knife lifespan.

3 scoring profiles enable up to three scoring profiles (point to point, male to female, point to flat); Motorized switchover between scoring profiles, motorized scoring depth adjustment to meet different caliper

Friendly computer interface featuring convenient and easy operation.

4 outs

Main Technical Data

Available width: 2200mm

Designed speed: 350m/min

Min. slit-to-slit distance: 180mm

Min. score-to-score distance: 0mm

Tool set-up precision: ±1mm

Tool setup: 12s
