Brand Name : SOOME
Model Number : 2400 Model
Certification : CE
Place of Origin : China
MOQ : 1 set
Price : negotiation
Payment Terms : L/C, T/T, Western Union
Supply Ability : 200 per/mounth
Delivery Time : 24 days after depoist
Packaging Details : wooden case with plastic film
Voltage : 380V/400V/415V or others
Machine power : 4.5/6/8KW
Condition : New
Driven type : Electric
Warranty : 1 Year
Max slitting size(mm) : 1800/2000/2800
Min slitting size(mm) : 130
Min slitting length (mm) : 350
Min scorer width(mm) : 130
Automatic grade : Semi-Automatic
ENC Computer Control 2400 Type Slitter Scorer Corrugated Machine
Equipment introduction:
1. Touch screen control, convenient, safe, fast and accurate.
2. No need skilled worker, new hand can operate.
3. Six axis press paper, no skew.
blades 6 scorer wheels, servo motor control, 3 seconds in place, more precision.
4. Scoring synchronize with pre-score.
5. Free of position baffle adjustment.
6. Can shift the order when the main motor is running.
7. Pre-creasing, creasing, board clipping, three-axis electric lifting.
8. 600pcs orders memory stroage.
9. Automatic scheduling function, convenient and fast.
Technical index:
|
Name |
Parameter |
Name |
Parameter |
|
Working speed | 120m/min |
Minimum creas gap | 40*140mm |
|
Touch Screen |
This interface is simple and easy to operate |
Slitting/Creasing precision | 0.5mm |
|
size of blade
| 200*122*1.2mm
|
Blade material |
Tungsten alloy knife |
|
Line height
| 2-12mm
|
Pre-loading wheel, creaser wheel
| 148mm |
|
Feeding shaft | 2400*127mm
|
scorer
| Convex to square |
|
Machine overall size | LXWXH)3500x1500x1900mm 3500x1500x1900mm
|
Minimum board width
| 140mm
|
|
Bearing
|
NSK/Harbin/C&U
|
Main motor power | 4kw |



|
|

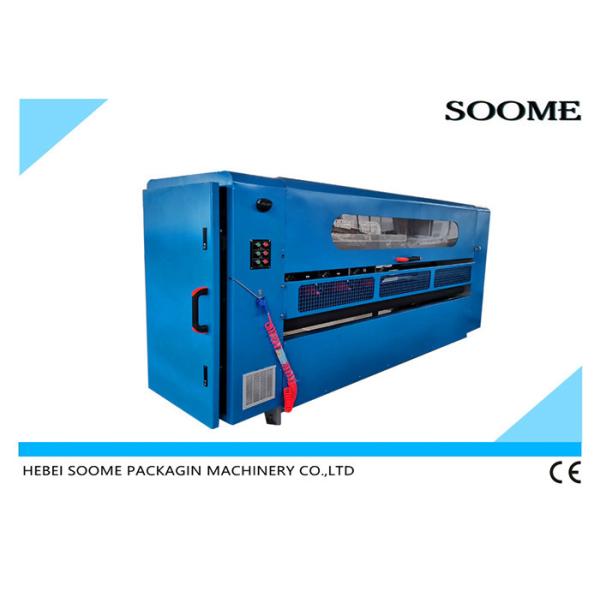

Enc Computer Control 2400 Type Slitter Scorer Corrugated Machine Images |
