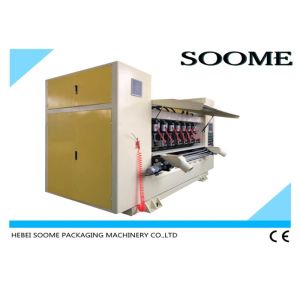

Auto Thin Blade Slitter Scorer Machine For Cutting Creasing Corrugated Paper
Soome Machine,established in 1995.Specialized in developing and manufacturing the automatic,high speed,precise and good quality corrugated machines.We provide the whole dry-end solution for corrugated production line slitter scorer and touch line indentation machine .
Facing the fierce competition in corrugated packing field,our company adopt three concepts"mechanotronics""intelligent operation"and"simple usage".We developed several new high speed automatic machines which improved the competition ability of our customers.
We got the recognition of thousands packing companies from domestics and overseas based on the principle of honest and trustworthy.Our products sold to Italy,Argentina,Russian,India,Pakistan,Germany,Egypt,Vietnam,Kazakhstan,Iran,Turkey,Spain and so on.
Wish we unite in a concerted effort for the beautiful future!
Function and features:
Suitable to the corrugated cardboard slitting and scoring in the production line. Fully automatic controlled by computer.
- Individual motor and controller on each slitter and scorer sets,quick and accurate order change.
- Slitters and scorers are frequency inverter controlled,speed synchronizes with line speed.
- Two rows of scorers in front and back,realizes minimum scorer spacing is 0mm.
- There are three types of scorers. Front row: Male-to-flat/ Pre-score; Back row: Male-to-female.
- Electric score-depth adjust.
- Alloyed tungsten steel thin-blades,sharp and long life of over 8 million meters ,auto sharpening.
- Standard motorized body left-right rectification controlling system.
- Individual sealed electrical cabinet,dust-free,constant temperature and humidity ensure longer life.
- Standard touch screen monitor,easy to operate.
- Standard communication interface HMI,easy to link with management system.
- Color code tracker or absorption of waste are optional.
- A memory of 999 orders.Non-stop orders changeover or manual change over can be realized.
- High quality beeline rail and high-precision screw conveying guarantees a ±0.5mm precision
Technological parameter:
| TYPE | SMBD-ANC-1600 | SMBD-ANC-1800 | SMBD-ANC-2000 | SMBD-ANC-2200 | SMBD-ANC-2500 | SMBD-ANC-2700 |
| Effective width | 1400 | 1600mm | 1800mm | 2000mm | 2300mm | 2500mm |
| knife configuration | 4 | 5,6 | 5,6 | 6,7 | 6,7 | 6,7 |
| Scorer configuration | 6 | 8,10 | 8,10 | 10,12 | 10,12 | 10,12 |
| Order change time | Common type | 3-8s | 3-8s | 3-8s | 3-8s | 3-8s | 3-8s |
| AC servo type | 1-5s | 1-5s | 1-5s | 1-5s | 1-5s | 1-5s |
| Min. Slitter-spacing | 160mm | 160mm | 160mm | 160mm | 160mm | 160mm |
| Min. Score-spacing | 0 | 0mm | 0mm | 0mm | 0mm | 0mm |
| Slitter/Scorer precision | ±0.5mm | ±0.5mm | ±0.5mm | ±0.5mm | ±0.5mm | ±0.5mm |
| Machine body rectification range | 200mm | 200mm | 200mm | 200mm | 200mm | 200mm |
| Dimensions L x W x H (mm) | 2880*1900* 2360 | 3080*1900* 2360 | 3280*1900* 2360 | 3480*1900* 2360 | 3780*1900* 2360 | 3980*1900* 2360 |
Mechanical parts
Taiwan HIWIN linear guide way.
Order changing used HIWIN precision ball screw.
Bearings:Germany FAG,China HRB famous brand.
Synchronous belt:Japan SUBAK.
Adopt raw material tungsten alloy thin blade
