2750mm Lead Edge Feeder Computer Control Thin Blade Slitter Scorer
Function: Lead edge feeding, slitting various specifications of cardboard.
Human machine interface —PLC control,The system for robot operating system more humanized, simple structure, easy to maintain.
1 . Manual/auto feeder is available
2 . Pre pressing roller,slitting blade and scorer holder are auto adjusted
3 . Grinding knife is auto/manual
4 . Cardboard thickness and press power are auto adjusted
5 . Jog for fine-adjusted
6 . Auto counter
7 . Slitting and press line precision ±0.5mm
8 . Human machine interface —PLC control,cutter paper thin blade change order use stand alone stepper motor control,auto change order speed 1-20S,error precision±0.5 mm.
9 . Operation humanized.,no technical content,worker use operation use easy.
10 . Slitting part:Adopt high quality tungsten steel thin blade,sharp and long work life,slice more tidy,non-pressing and non-burr.
11 . Pre pressing roller,slitting blade and scorer holder are auto lifting
12 . This machine can memory 999 group order,don’t need stop machine can change order and manual change order.
Main technical parameters
| Model | SMBD-CNC-2750 | SMBD-CNC-3100 |
| No.s of slitting scoring | 4/6 5/8 6/10 |
| Max.production speed | 180m/min |
| Max.feeding width | The Max.slitting between the two blades:2250mm | The Max.slitting between the two blades:2750mm |
| Max.slitting width | 2500mm | 2900mm |
| Min.slitting width | 200mm | 200mm |
| Min.feeding length | 400mm | 400mm |
| Min.scoring distance | 40*135mm | 40*135mm |
| Gap adjustment | Auto |
| Main motor power | 15kw | 20kw |
| Dimensions L*W*H | 1900*3450*1800mm | 1900*3950*1800mm |
| Weigh | 4780kg | 4980kg |
Soome Machine,established in 1995.Specialized in developing and manufacturer the automatic,high speed,precise and good quality corrugated machines.Provide a complete set of corrugated carton manufacturing solutions.
Facing the fierce competition in corrugated packaging filed,our company adopt three concepts “mechanotronics” “intelligent operation” and “simple usage”.We developed several new high speed automatic machines which improved the competition ability of our customers.
We got the recognition of thousands packaging companies from domestics and overseas based on the principle of honest and trustworthy.Our products sold to Italy,Argentina,India,Pakistan,Russia,USA,Germany,Korea,Iran,Southeast Asia and so on .
Wish we unite in a concerted effort for the beautiful future!
WARRANTY:
1 year warranty after installation,of the spare parts is broken in the warranty period,we will send replacement parts as free,but delivery cost will be your account.
INSTALLATION AND TRAINING
We can send 1-2 engineers to install and set up machine,but all the charges should be paid by buyer.
|
|

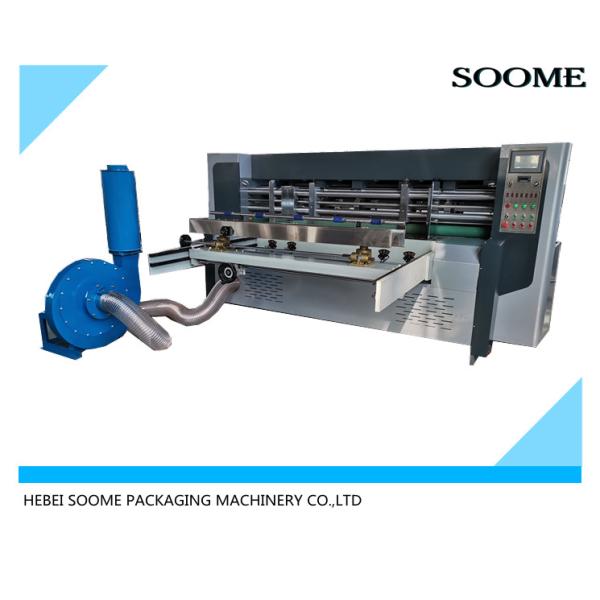

2750mm Lead Edge Feeder Computer Control Thin Blade Slitter Scorer Images
|
