SMBD-SJ 1800 Type 5 Points Scoring On Line Lifting Slitter Scorer Machine
1. Product overview:
SMBD-SJ On line Lifting slitter scorer machine, The more shafts thin blade slitter scorer adopt two shafts in front and back of the slitter, can minimize the length of paperboard, is suitable to the common paper and the small baffle paper. Electrical adjustment of the blades work width, automatic locking, improved the working efficiency.
2. Technical index:
| Model | 1600 | 1800 | 2200 |
| Efficient width | 1650mm | 1850mm | 2250mm |
| Min. slitting width | 120mm |
| Min. creasing width | 30mm |
| Blade model | Φ260*1158*1.3mm |
| Creasing roller model | (up)φ152mm(down)φ152mm |
| Correction range | ±100mm |
| QTY of blade/scorer | 4/6 | 5/8 | 6/10 |
| Depth of creasing | 0-12mm |
| Design speed | 150 m/min |
3. Main configuration:
1. Can set processing paper qty, automatic stop the feeding after finishing.
2. Suitable to the long paper slitting creasing.
3. Electrical adjustment of the slitting blade work width, automatic locking, dual guide shafts, dual locking air cyliner, steady running, easy to adjust. Has the inlay o-ring seal, dust-proof, reduce the failure rate.
4. Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.
5. Adopt eight rolls, two roll-rang feeding, then scoring ,easy to adjust. It can do slitting only without scoring, avoid error conveying when scoring later. Can choose automatic or manual sharpening of blade.
4. Main function :
Electrically adjust the working distance of the longitudinal cutter to lock automatically.
Alloyed steel thin-blades,sharp and long life of over million meters ,auto sharpening.
Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.
Motorized body left-right rectification 200mm.
Features and characteristics:
1. Main part: adopts double rubber rollers pull feeding, then slitting, after that the other pair of rubber rollers lead the paper to the scoring shafts to score. Paperboard runs steadily and the scoring line is very clear and straight, it is a important processing for making fine carton box.
2. Slitting part: adopt high quality tungsten steel blade, sharp and long working life, slice tidier, non-pressing and non-burr.
3. Scoring part: scoring distance in-phase adjustment, blazonry and easy to bend the carton sheet.
4. Grinding part: adopt automatic and manual pneumatic grinding type. It can grind while working, which can improve working efficiency.
5. Electric control lifting-down and correct error, easy to operate and suitable for different requirements
1.Used thin blade slitting paperboard to avoid burr and be flattened. Finished cardboard is flat and smooth and free from burrs and press flatten, good straightness, improve quality and appearance of cardboard.
2.Automatic sharpening blades, cutting and grinding at the same time. Keep the sharpness of blade and increase working efficiency.
3.Scorer with the martin technique of French, no tear for high, medium, and low-grade cardboard.
4.Adjustable speed motor drive.
5.This machine slitter firstly, then prepress, and malefemale finally. It could be do slitting without scoring,avoid error when scorer.
6.The pre pressing moulding can decrease the damage of paperboard, suitable to the creasing of lowgrade quality paperboard
Product Tags:
|
|

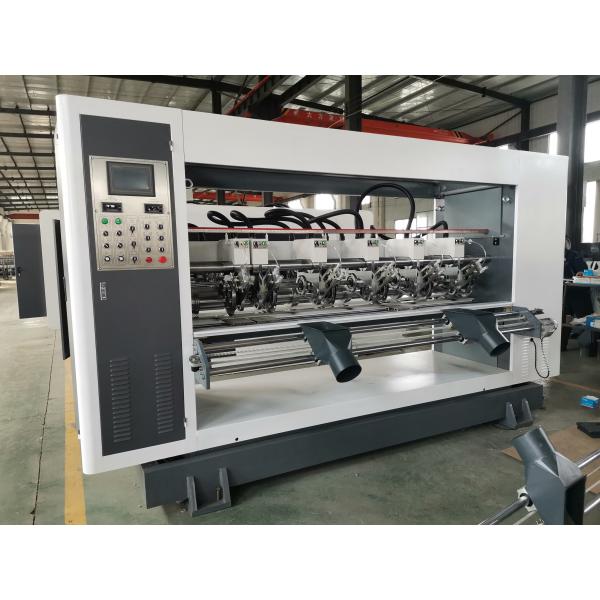

SMBD-SJ 1800 Type 5 Points Scoring On Line Lifting Slitter Scorer Machine Images
|
