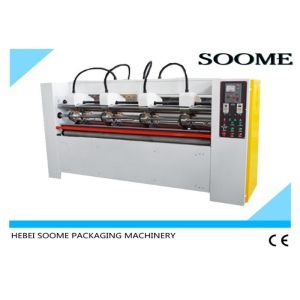

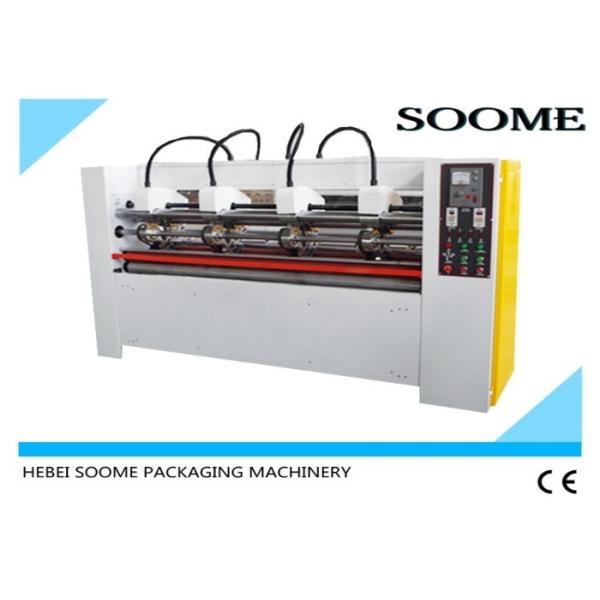

Blade Electric Adjusted Offline Thin Blade Slitter Scorer Cutting Corrugated Machine 2200mm 380V
Function and Features
1. Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.
2. Adopt 8 shafts design, two shafts in front and back of the slitter, can minimize the length of paperboard machining to 260mm.
3. 8 shafts with front-scoring feeding,back double rubber rollers for paper leading, running more steady.
4. Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.
5. Grinding part: adopt manual type grinding , it could be grinding when working, improve work efficiency. Option: blade pneumatic grinding.
6. Electric adjusted the space of slitter blade and auto pneumatic locking, easy to operate, improve the efficiency.
7. Double guide smooth shafts, operate stably; inlay PU ring seal, clean and dust-proof.
Technical parameters
| TYPE | SMBD-DD-1800 | SMBD-DD-2000 | SMBD-DD-2200 | SMBD-DD-2500 | SMBD-DD-2700 | SMBD-DD-3000 |
| Effective width | 1600mm | 1800mm | 2000mm | 2300mm | 2500mm | 2800mm |
| Speed | 140m/min | 140m/min | 140m/min | 140m/min | 140m/min | 140m/min |
| Total power | 3kw | 4kw | 5kw | 5kw | 5kw | 5kw |
| Min. Slitter-spacing | 130mm | 130mm | 130kw | 130kw | 130kw | 130mm |
| Min. Score-spacing | 30mm | 30mm | 30mm | 30mm | 30mm | 30mm |
| Min. Paper length | 260mm | 260mm | 260mm | 260mm | 260mm | 260mm |
| Dimensions L x W x H (mm) | 2450*770*1700 | 2650*770*1700 | 2850*770*1700 | 3150*770*1700 | 3350*770*1700 | 3650*770*1700 |
Our service:
Pre-sale: product introduction, technical exchange, non-standard product design, troubleshooting.
In sale: keep good faith contract, ensure timely delivery, keep in touch at any time, to special or complex products, I plant arrange technical personnel to the user for product use and troubleshooting, debugging and maintenance guidance.
After sale: the guarantee period is 12 months out of the factory, in the course of use, regular return visit, consult the user to the product quality use condition, the improvement opinion and so on aspect feedback, in order to further improve the product quality.
Blade part Picture
