Brand Name : SOOME
Model Number : SMBD-QYSD 2200/2500/2800/3000 Type
Certification : CE certification
Place of Origin : Hebei China
MOQ : 1 set
Price : negotiated
Payment Terms : L/C, T/T, Western Union, MoneyGram
Supply Ability : 100sets per month
Delivery Time : 40 days after deposit
Packaging Details : Wrapped with film or in wooden case packing
Voltage : 220V/380V/420V
Power : 11kw
Warranty : 1 Year
Min slitting width : 130mm
Min creasing width : 30mm
Blade model : up & down diameter 152mm
Blade and scorer : customer design
Depth of creaseing : 0-12mm
Machine weight : 3200kg
Product overview:
1. The baffle size for screw adjustment,easy to operate.
2. Can set the qty.of paperboard,automatic stop the feeding after finishing.
3. Automatic feeding paper, Improve the safe operation,decreased the working load.
4. Cutting indentation for long cardboard.
2. Technical index:
| Model | 2200 | 2500 | 2800 | ||
| Efficient width | 1900mm | mm | 2250mm | ||
| Min. slitting width | 130mm | ||||
| Min. creasing width | 30mm | ||||
| Blade model | Φ200*122*1.3mm | ||||
| Creasing roller model | (up)φ152mm(down)φ152mm | ||||
| Correction range | ±100mm | ||||
| QTY of blade/scorer | 4/6 | 5/8 | 6/10 | ||
| Depth of creasing | 0-12mm | ||||
| Power | 11 kw | ||||
Slitter Unit:
Electric adjusted the space of slitter blade,auto pneumatic locking,Double guide optical axis,Double locking cylinder,stable operation,Convenient adjustment.The knife rest built-in polyurethane rubber, dust prevention,reduce the failure rate.
Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr


|
|

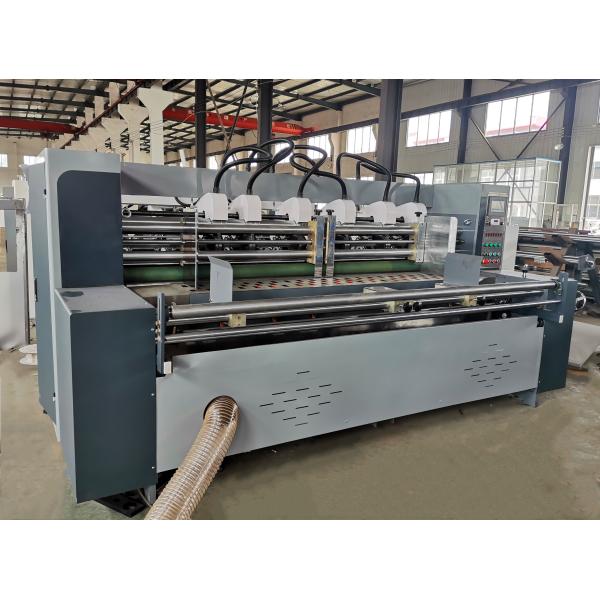

SMBD-QYSD 2200 Type Thin Blade Slitter Machine 4 Balde 6 Scorer Images |
