Computerized Nc Corrugated Then Knife Cutting Rotary Slitter Scorer Machine To USA
| Model | SMBD-ANC-2750 | SMBD-ANC-3250 |
| No.s of slitting scoring | 4/6 5/8 6/10 |
| Max.production speed | 180m/min |
| Max.feeding width | The Max.slitting between the two blades:2250mm | The Max.slitting between the two blades:2750mm |
| Max.slitting width | 2600mm | 3100mm |
| Min.slitting width | 200mm | 200mm |
| Min.feeding length | 200mm |
200mm |
| Min.scoring distance | 40*135mm
| 40*135mm |
| Gap adjustment | Manual | Manual |
| Main motor power | 10kw | 12kw | |
| Dimensions L*W*H | 1570*3450*1500mm | 1570*3950*1500mm |
| Weigh | 2780kg | 2980kg |
Function and features:
FEEDING UNIT:
The baffle size for screw adjustment,easy to operate.
Can set the qty.of paperboard,automatic stop the feeding after finishing.
Automatic feeding paper, Improve the safe operation,decreased the working load.
Cutting indentation for long cardboard.
SLITTER SCORER UNIT:
Electric adjusted the space of slitter blade,auto pneumatic locking,Double guide optical axis,Double locking cylinder,stable operation,Convenient adjustment.The knife rest built-in polyurethane rubber, dust prevention,reduce the failure rate.
Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr
Adopt eight roll , two roll-rang feeding, then scoring ,easy to adjust.It could be do slitting only without scoring, avoid error when scoring.
Adopt automatic and manual two kinds grinding type.
Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.
HRB bearing,long time running.
Mechanical parts
Taiwan HIWIN linear guide way.
Order changing used HIWIN precision ball screw.
Bearings:Germany FAG,China HRB famous brand.
Synchronous belt:Japan SUBAK.
Adopt raw material tungsten alloy thin blade
| Name | Brand | From |
| Touch screen | WEINVIEW | Taiwan |
| PLC | Panasonnic | Japan |
| Circuit breaker | SHILIN | Taiwan |
| Electric relay | Schneider | France |
| Push-button | ABB | Switzerland |
| Main motor | Yongshun | Guangzhou |
| Actuator | YANKONG | CHINA |
| Driving motor | YANKONG | CHINA |
| Decelerator | YONGKUN | Taiwan |
| Photosensor | OMRON | Japan |
| Proximity switch | OMRON | Japan |
| Air cylinder | Tianao | China |
| Frequency transformer | Mitsubishi | Japan |
| Bearing | RENBEN | HRBIN |
| Blade | 260×158 8 hole | Chengdu Shengong |
| Electromagnetic valve | Tianao | China |
Control system
Slitter and scorer order changed motor:Taiwan Delta AC servo motor(26sets for 6 blades 10 scorers)
Slitter and scorer order changed drive:Taiwan Delta AC servo drive(26sets for 6 blades 10 scorers)
Machine motor:Taiwan TECO frequency motor.
MCGS color touch screen.
Taiwan Delta PLC.
Position test sensor:Korea Autonics
Low voltage apparatus:France Schneider air switch,switch button, AC contactor,etc.
Product Tags:
|
|

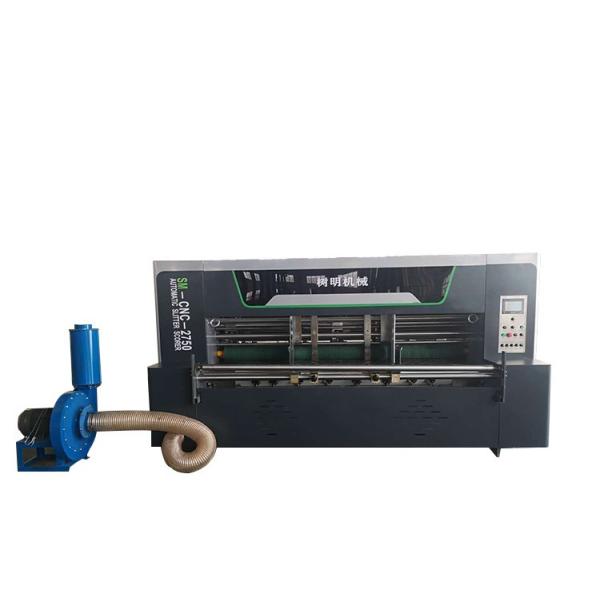

10kw Rotary Thin Blade Slitter Scorer Machine Images
|
