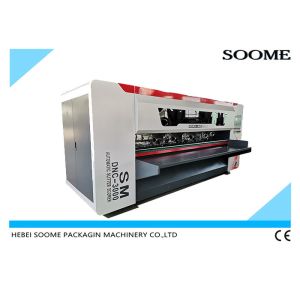

3m Full Automatic Independent Rotary Thin Blade Machine
| Model | SMBD-ANC-2750 | SMBD-ANC-3250 |
| No.s of slitting scoring | 4/6 5/8 6/10 |
| Max.production speed | 180m/min Thin Blade Machine |
| Max.feeding width | The Max.slitting between the two blades:2250mm Thin Blade Machine | The Max.slitting between the two blades:2750mm Thin Blade Machine |
| Max.slitting width | 2600mm Thin Blade Machine | 3100mm Thin Blade Machine |
| Min.slitting width | 200mm Thin Blade Machine | 200mm Thin Blade Machine |
| Min.feeding length | 200mm Thin Blade Machine | 200mm Thin Blade Machine |
| Min.scoring distance | 40*135mm Thin Blade Machine | 40*135mm Thin Blade Machine |
| Gap adjustment | Manual Thin Blade Machine | Manual Thin Blade Machine |
| Main motor power | 10kw | 12kw | |
| Dimensions L*W*H | 1570*3450*1500mm | 1570*3950*1500mm |
| Weigh | 2780kg | 2980kg |
-
Main features :
1 )Whole machine adopts thin balde wheel , overcome the shortcoming of rough edges and squashed , cutting carton un-crush courrugating flute, the dividing paperboard is neat and no raw edge, the quality of paperboard quality is improved Thin Blade Machine.
2 )Grinding include manual and automatic type, it could grind during manufacturing , make sure
Sharp of the blade and improve efficiency . Thin edge ( about 1 mm) ,with grindston griding Thin Blade Machine.
3) Scoring adopts advanced technology , without rip during in high manufacture speed Thin Blade Machine.
4 )The thin edge slitter scorer used for corrugated board production line can be provided Thin Blade Machine.
5) 3 knife 4 lines , 4 knife 6 lines ; 5 knife 8 lines or as your requires Thin Blade Machine.
a) This machine has automatic sharpening system. Each blade has independent control of the sharpening switch. In order to extend the blade life effectively, you can according to the production quantity adjust the sharpening interval time Thin Blade Machine.
b) Electromagnetic adjustable-speed motor. After the deceleration of a belt, chain drive to the host work. The operation is reliable and stable.
c) This machine blade adopt tungsten steel material. It has high quality and long life, slitting paper can be up to 200-400 millimeters Thin Blade Machine.
d) The feeding part has pre-pressed wheel design. Creasing part is 3mm width design. That can ensure the paper board without crack and the poly-lines as a straight angle when the creasing Thin Blade Machine.
e) The slitting blade has culet and rolling bearing design, and adjust very flexible and convenient Thin Blade Machine.
SOOMEPACK Carton Machinery Manufacturing Co.,LTD , located in Hebei Province Dongguang County , Since its establishment, It has been dedicated to the design and manufacture of carton machinery and printing machine , Has a wealth of practical experience and the basis of standards .
Advanced design , Highly qualified researchers , drawings and analysis , advance processing technology and is responsible for ensuring quality of each process step to meet the customer’s requirements .
Main products include automatic flexo ink corrugated paperboard printer slotter die cutter ; Automatic folding gluing machine ; semi-auto stitching machine ; Flute laminator ; Thin blader slitter scorer ; NC helical cut off machine ; NC straight knife cut off machine, single facer, mill roll stand, sheet cutter ….. and so on .
With 20 years experiences and excellent product quality , reasonable price , good after-sales service , reliable reputation , won the recognition of the broad masses of users , we are committed to becoming of your business partners , In good faith to return the trust and support you give .
